Description

Suitable for flat roofs, the VCM manually operated skylight provides comfort and energy savings of free daylight and natural ventilation.

• Maintenance free – White PVC interior frame for a tough interior finish.

• Outer aluminium cappings (grey).

• Available in 7 sizes.

• High Performance double glazing as standard; with NEAT™ outer coating: reduces cleaning frequency.

• Includes removable insect screen.

• Requires custom-made flashing (not supplied by VELUX).

Technical Performance

U-value†

Skylight 2.90 | Glass only 1.93

Solar Heat Gain Co-efficient†

Skylight 0.24 | Glass only 0.28

Heat block

Approx 75%

Bushfire^

BAL40

Hailstone Test

VELUX Simulated Tests ASTM E822-2009

WERS

Max 5 stars (summer rating)

Australian Standards

AS4285 AS1288 AS3959^ AS1530.8.1††

Manual control options VCM (sold separately)

• ZZZ 201 Winder handle for in-reach operation.

• ZCT 300 Telescopic rod control. (Extendable between 145cm-285cm)

• ZOZ 032 Short control rod. 60cm long.

Surpasses Australian tests for skylights

High Performance Double Glazing

Guaranteed to last

10 Year Warranty on all Velux skylights, roof windows and flashings.

3 Year Warranty on Velux accessories, including electric controls & blinds.

CodeMark is a voluntary certification scheme owned by the Commonwealth of Australia that provides legally binding evidence of compliance to the National Construction Code of Australia. One certificate replaces dozens of technical papers.

* For roofs below 15° pitch, VSS/VSE skylights need to be raised to 15° and custom flashed. VELUX can assist with technical advice and drawings. (NB: build-up not recommended in Bushfire areas.)

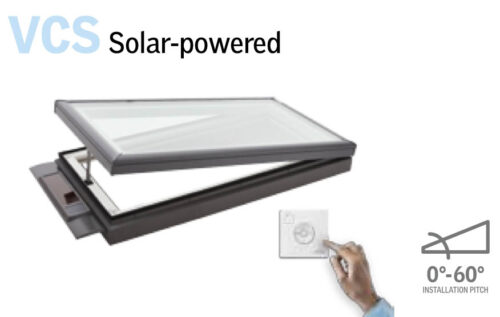

** VELUX recommends VCS is installed with a slight pitch (e.g. 3°-5°) to help reduce condensation build-up and water ponding on the glass.

† U-value (W/m²K) and SHGC data based on AFRC simulations, (complete skylight size; VSS/VSE: 1140mm x 1180mm, VCS: 1275mm x 1275mm) .

# Cyclone test not performed with screws provided, installation requires #8 roofing screws.

± Hailstone test not performed on solar panel. Solar panel not attached during test.

^ Skylight only. Custom-made flashing required. Skylight tested in closed position (VCS BAL assessed – based on VSS results), metal flywire mesh protection required for opening apertures (consult local council). Roof pitch; VSS: 18°-75°, VCS: 0°-60°. † † Assessed in closed position.
